Qwertykeys

[Extra] QK80 MK2

Rp 3.759.000
Kit:
Quantity:

Instock, ready to ship within 1-4 working days.
Available keyboard kit:

Kit Layout Case PCB Plate
1 WK Anodized Grey Tri-mode Non-flex cut Hotswap PCB (No RGB) ALU Plate
2 WK Anodized Grey Tri-mode Non-flex cut Hotswap PCB (No RGB) CF Plate
3 WK Spray-coated White Tri-mode Non-flex cut Hotswap PCB (No RGB) PC Plate
4 WKL Anodized Silver Tri-mode Non-flex cut Hotswap PCB (No RGB) POM Plate

HARAP DIBACA SEBELUM MEMBELI:

  1. Pengiriman luar pulau wajib tambah Packing Kayu (kerusakan dan kehilangan barang bukan tanggung jawab Mechaland). Tambah Packing Kayu lewat link ini: https://mechaland.id/products/packing-kayu.
  2. Wajib video unboxing, kami tidak akan terima jika ada masalah dengan order tanpa video unboxing.
  3. Hanya 1 keyboard kit (dan extra parts) per order. Jika ingin membeli lebih dari 1, bisa buat order baru setelah pembelian sebelumnya berhasil. Jika membeli extra parts, harap jangan dipisah dan jadikan 1 order bersama dengan keyboard kit. Extra parts bisa dibeli dari sini: https://mechaland.id/products/extra-qk80-mk2-extra-parts
  4. JANGAN dibeli bersama barang lainnya (Group Buy, Pre Order, In Stock). Akan dicancel jika dibeli dengan barang lain kecuali extra parts sebelumnya.
  5. Semua order final dan tidak bisa diubah jika sudah dibayar.

    Product Warranty:

    1. Void if the ownership is transferred (name on the invoice will be your proof of ownership).
    2. 1 year regarding PCB functionality (start from received the board).
    3. <2mm tolerance of visible surfaces after built.
    4. Cosmetic imperfections hidden after built on the PCB and plate are not covered.
    5. For purchasing PCB only without case, we will only give 1 week guarantee regarding PCB functionality.
    6. Complaint should be informed to us within 7 days after received the package and need unboxing video as proof. We won't accept any complaints without video proof.

    More info about the keyboard here: https://qwertykeys.notion.site/QK80-MK2-c963fa5dc8624dbd8bb862708a8d41a4

    What's inside:

    • Keyboard case

      • Includes pre-installed screen module and screen daughterboard
      • Includes two pre-installed 4000 mAh batteries
      • Includes four pre-installed rubber feet
      • Includes pre-installed PCB daughterboard and magnetic connector
      • Includes six pre-installed leaf springs
    • PCB Kit

      • PCB of your choice
      • PET sheet
      • IPXE sheet
      • PCB Foam
    • Plate of your choice

    • Case foam and anti-static film

    • Accessory pack:

      • 2.4g dongle
      • Silicone gaskets
      • Backup screen ribbon cable
      • Backup case corner protector
      • Backup screws and rubber feet
    • Free gifts:

      Disclaimer: If any of these gifts are missing or damaged, they will not be re-shipped or replaced

      • Stabilizers
      • Keyboard protective case
      • Switch and keycap puller
      • screwdriver
      • USB-C cable

    About QK80 MK2:

    Highlights

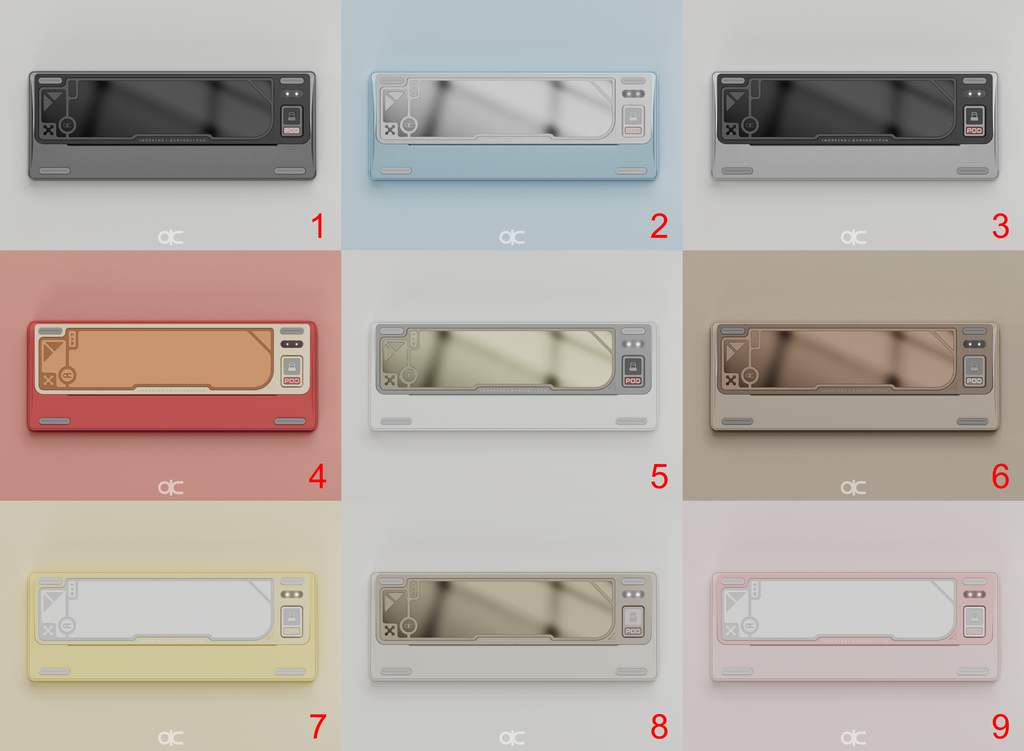

    • All CNC Aluminum Cases in 9 Meticulously Designed Color Combinations
      • Spray-coated: Bubble Tea, Retro White, Red*, White*, Pink*, Butter Yellow*
      • Anodized: Silver, Grey, Ice Blue

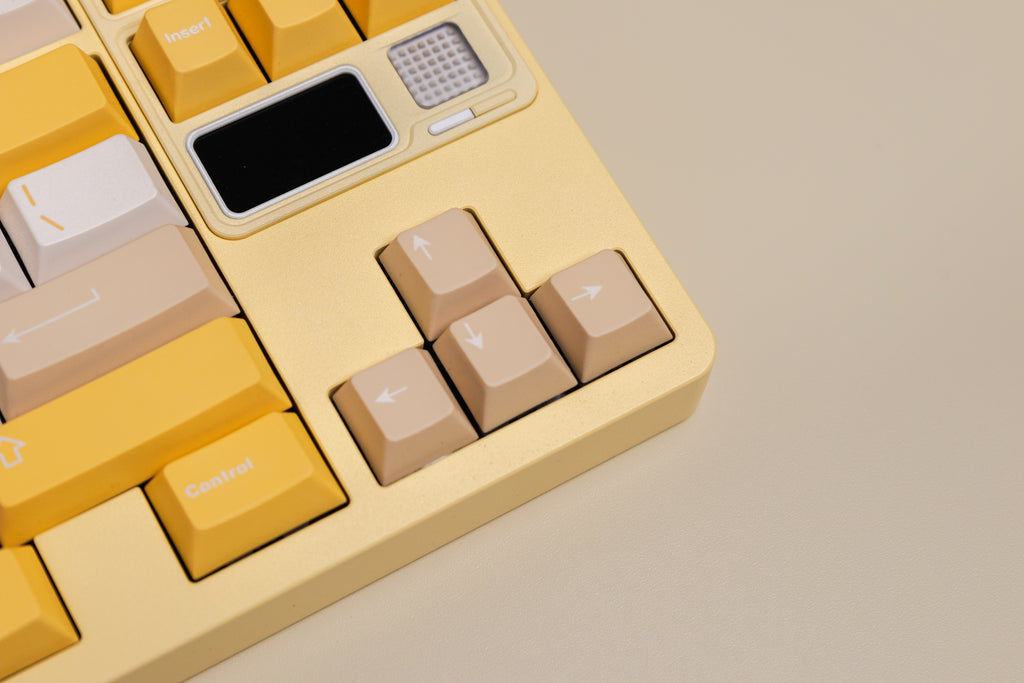

    • Upgraded TFT LCD Display and Dot-Matrix LED Panel with Customizable Functions
      • Featuring three distinctive built-in themes: Dynamic, Meow, and Code
      • The built-in Flappy Bird game allows you to take a break in the midst of a busy schedule
      • Displaying time, date, and connectivity status etc. on a unified dashboard for seamless access

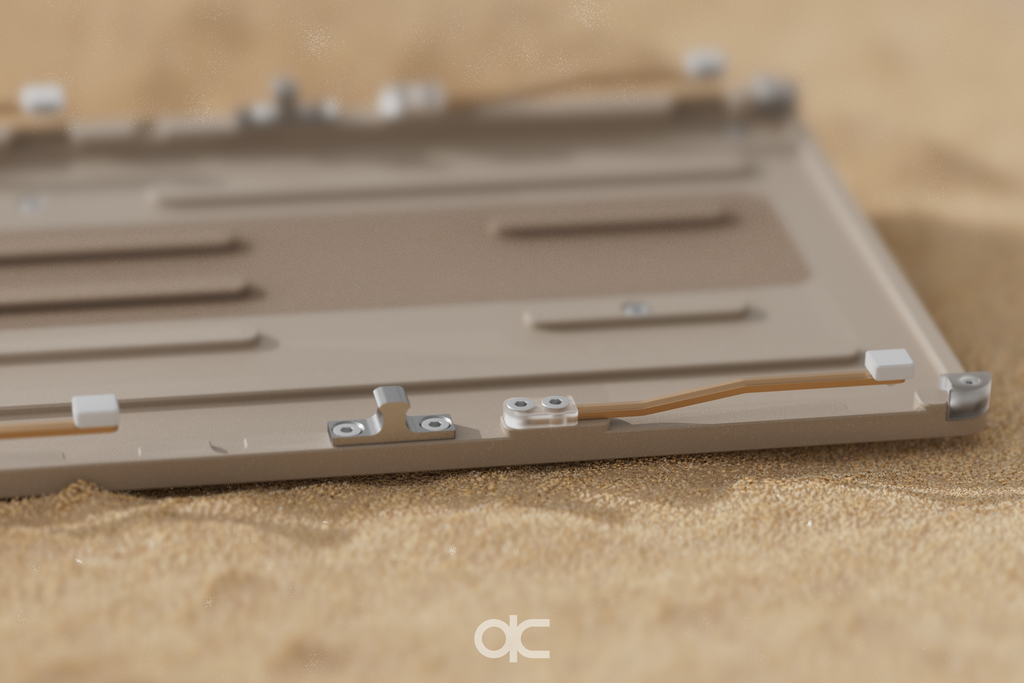

    • NEW Leaf Spring Mounting System + Refined Acoustic Chamber
      • A pioneering utilization in the QK series
      • Delivering a bouncier typing feedback and outstanding acoustic performance
    • NEW Ball-Catch Mechanism + Magnetic Connectors
      • Designed for quick and tool-free disassembly, enhancing user convenience and accessibility
    • Enhanced Core Chip for Optimal Performance
      • Engineered for reduced latency and better performance
    • Convenient Tri-mode Connectivity
      • Support wired, Bluetooth, and 2.4GHz connectivity
      • Equipped with dual 4000mAh batteries for an extended battery life
    • Upgraded Acoustic Package with the Introduction of a New PET Layer
      • Providing more materials for you to create your desired typing sound

    More info about the keyboard here: https://qwertykeys.notion.site/QK80-MK2-c963fa5dc8624dbd8bb862708a8d41a4

    Specifications

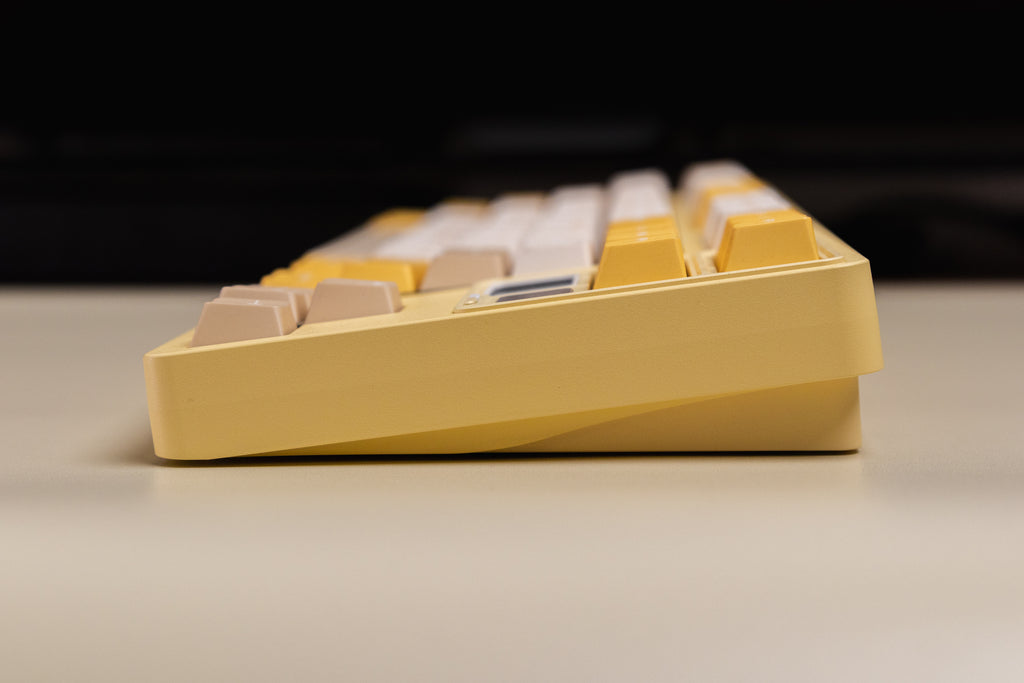

    • Typing angle: 7 degrees
    • Front height: 19mm
    • Size: 137mm * 362mm
    • Weight: around 1.8kg before build, 2.2kg after build

    PCB:

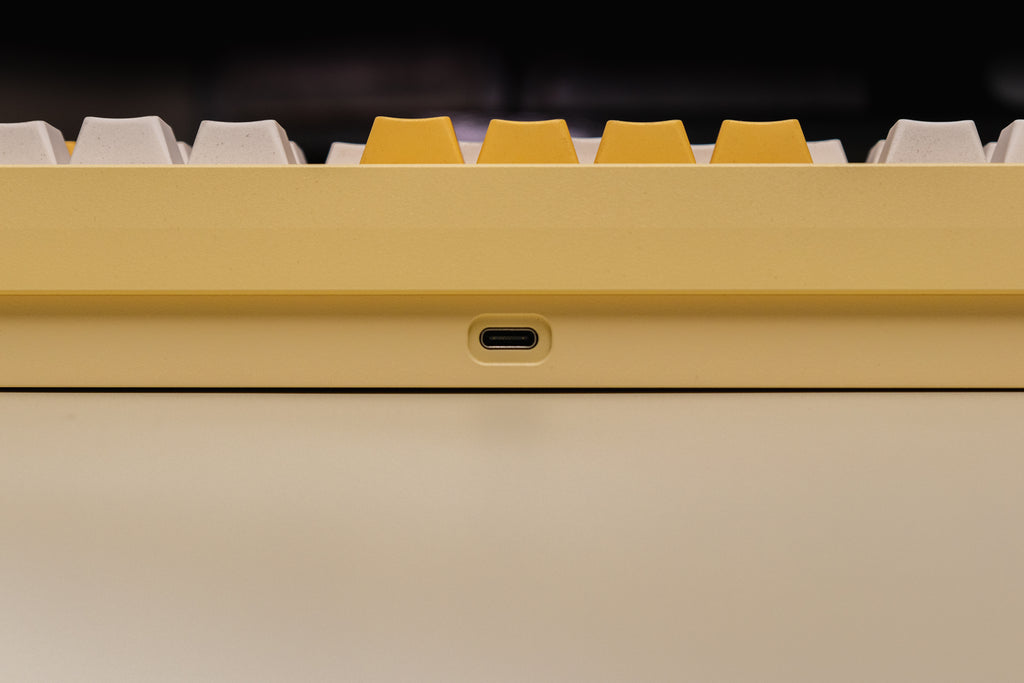

    1. Support USB-C, Bluetooth, and 2.4GHz connections

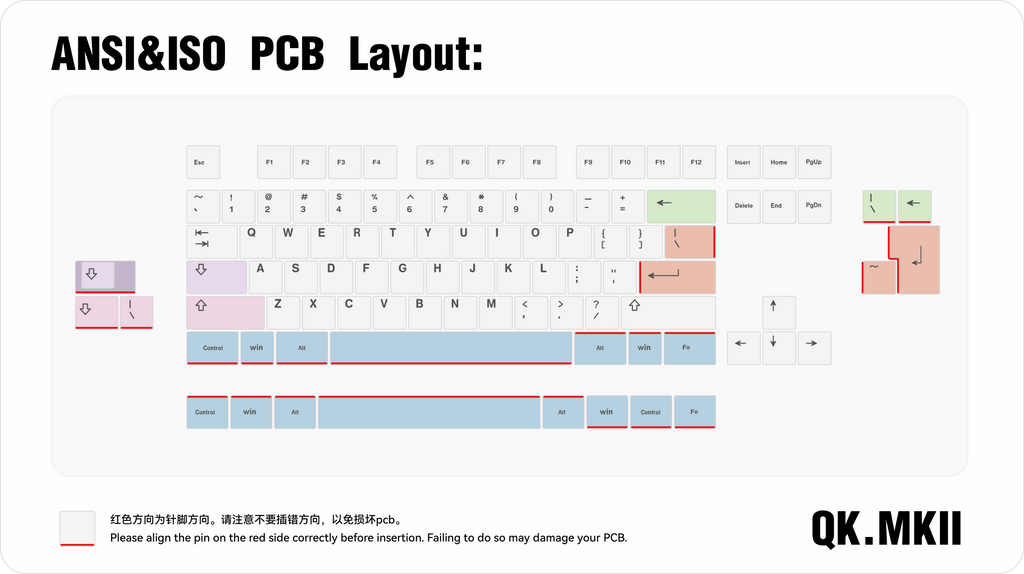

    2. Compatible with both ANSI and ISO layouts
    3. Work with WK and WKL cases
    4. Support both 6.25u and 7u spacebars
    5. Use QK's customized VIA web configurator for keymapping and screen customization, as the original VIA doesn't support advanced screen functions
    • Tri-mode Flex-cut Hotswap PCB w/Per-key RGB
      • 1.2mm thick
      • Per-key RGB
    • Tri-mode Flex-cut Hotswap PCB
      • 1.2mm thick
      • No Per-key RGB
    • Tri-mode Non-flex cut Hotswap PCB
      • 1.6mm thick
      • No Per-key RGB
