[Group Buy] Fox Lab Sand Glass Ergo 70% Keyboard Parts

Rp 679.000
Parts:
Quantity:

Product Page:
Keyboard Kit
Keyboard Parts

Welcome back to another ClickClack-run project, this time coming from one of our previous partners, Fox Lab! Sand Glass 80% was Fox Lab’s first keyboard with an Ergo layout. This time, we plan to continue with the Sand Glass design and release a 70% Ergo keyboard called Sand Glass FRL. Based on the original 80% design, we have removed the F-row, also we call it “small sand glass”. The small sand glass inherits the design concept of the Sand Glass 80%, with its shape and frame naturally outlining the image of a "sand glass".

What is include on the kit:

  • Top Case
  • Bottom Case
  • Middle Frame

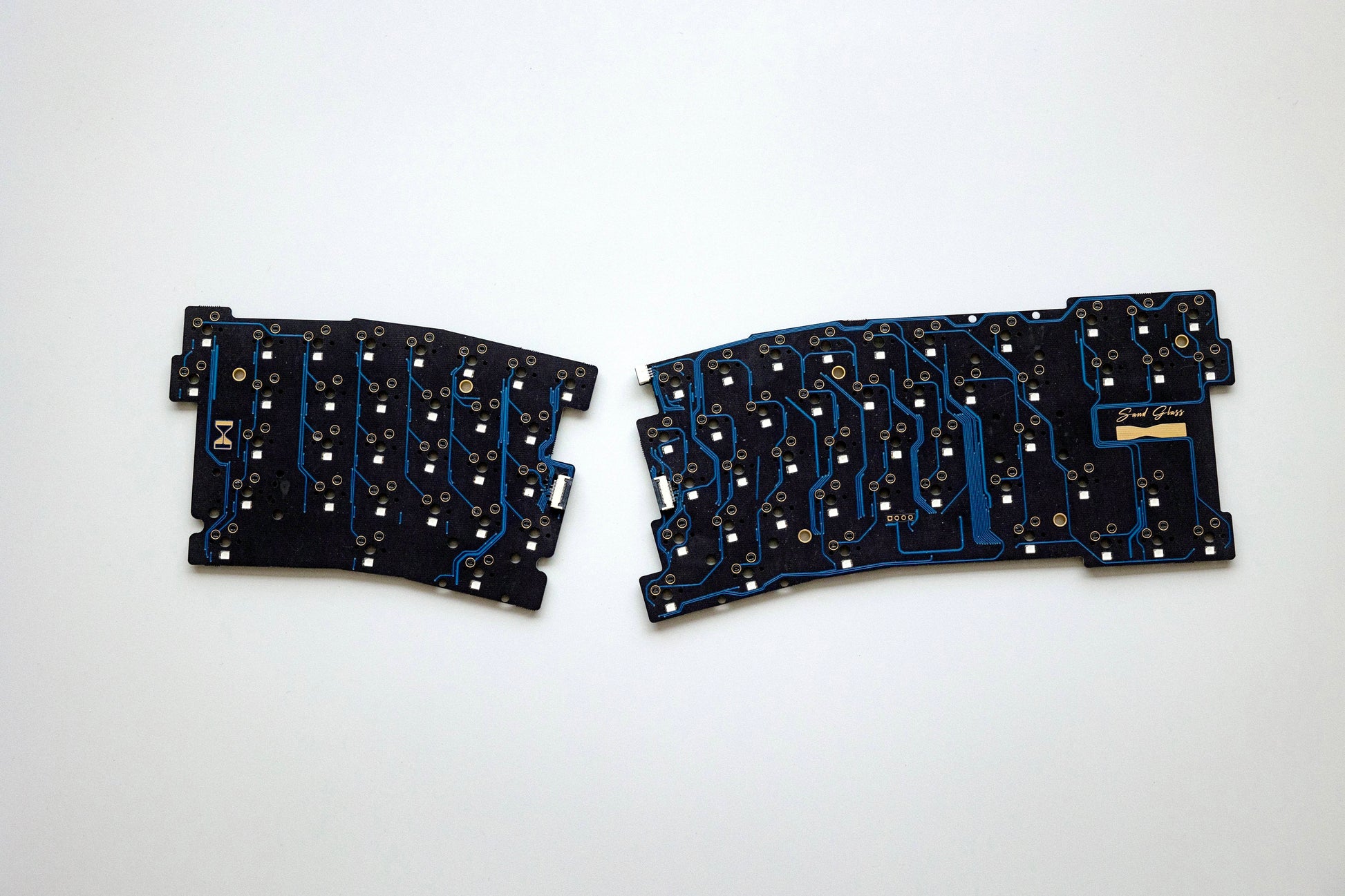

  • Separated PCB
  • Daughterboard and JST cable
  • Gaskets
  • Poron Case Foam
  • IXPE PCB Sheet
  • Poron Plate Foam
  • Rubber Feet

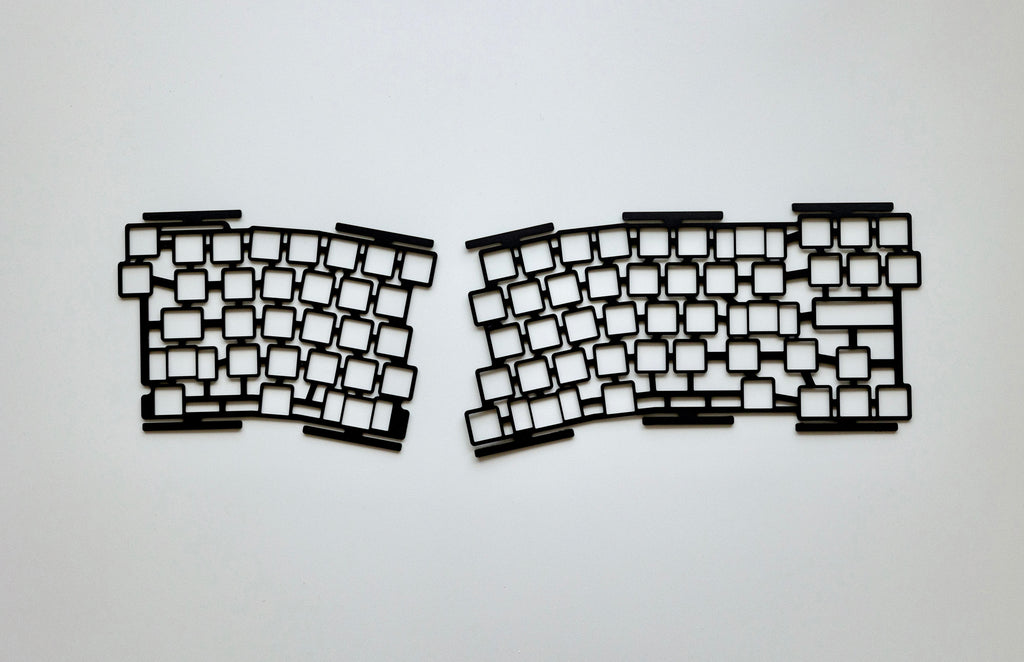

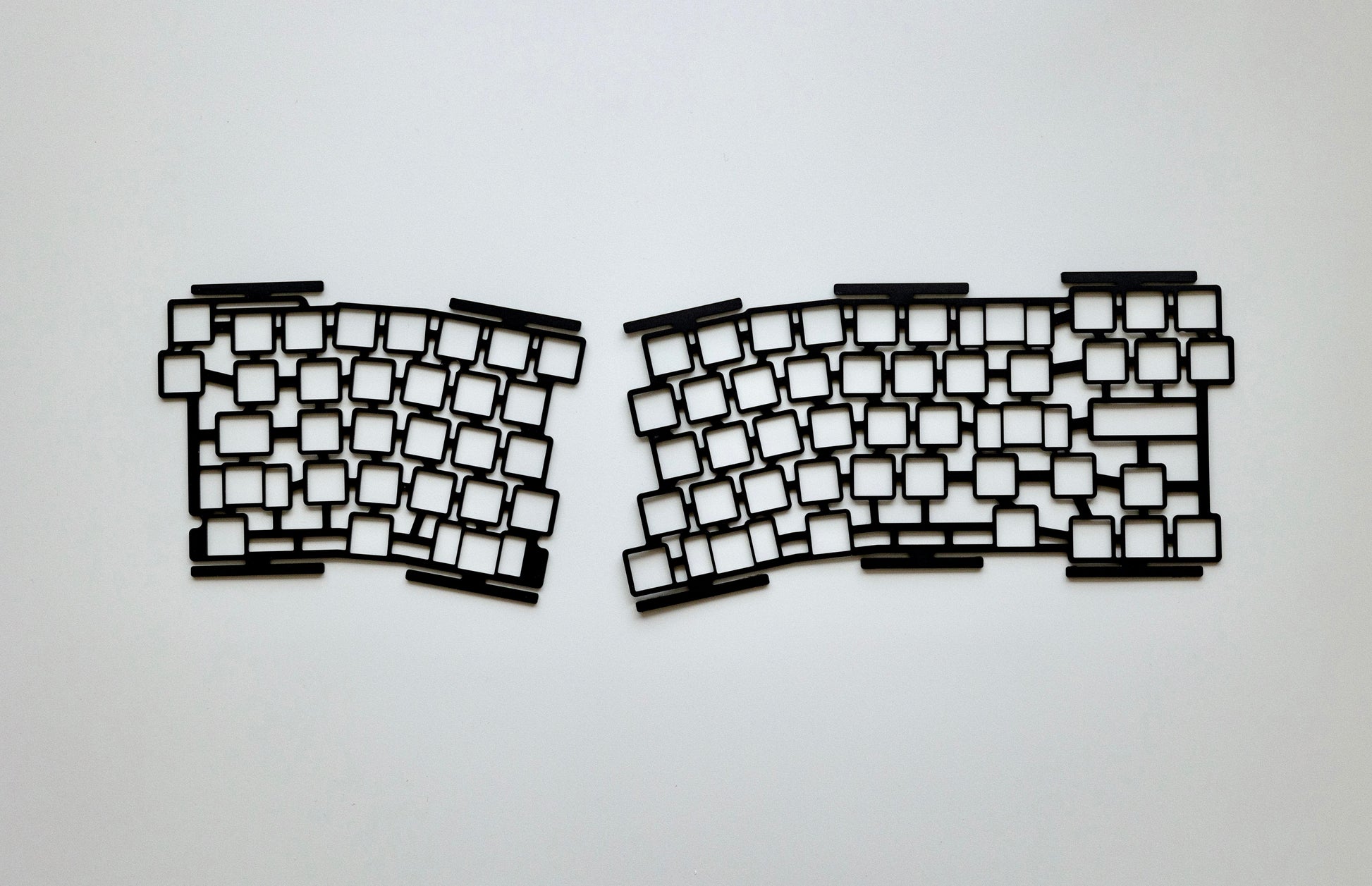

  • Skeleton Alu Plate
  • Screws

Structural Design Exploded View :

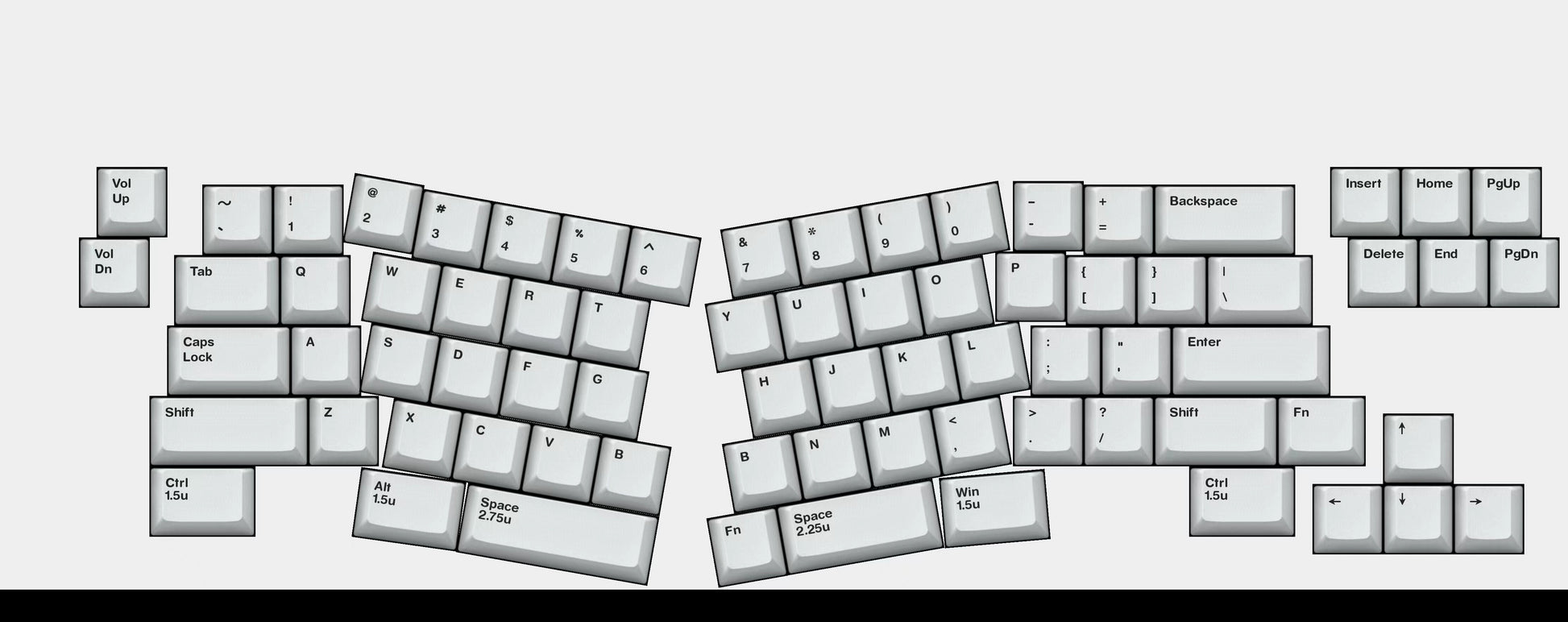

Hotswap PCB Layout

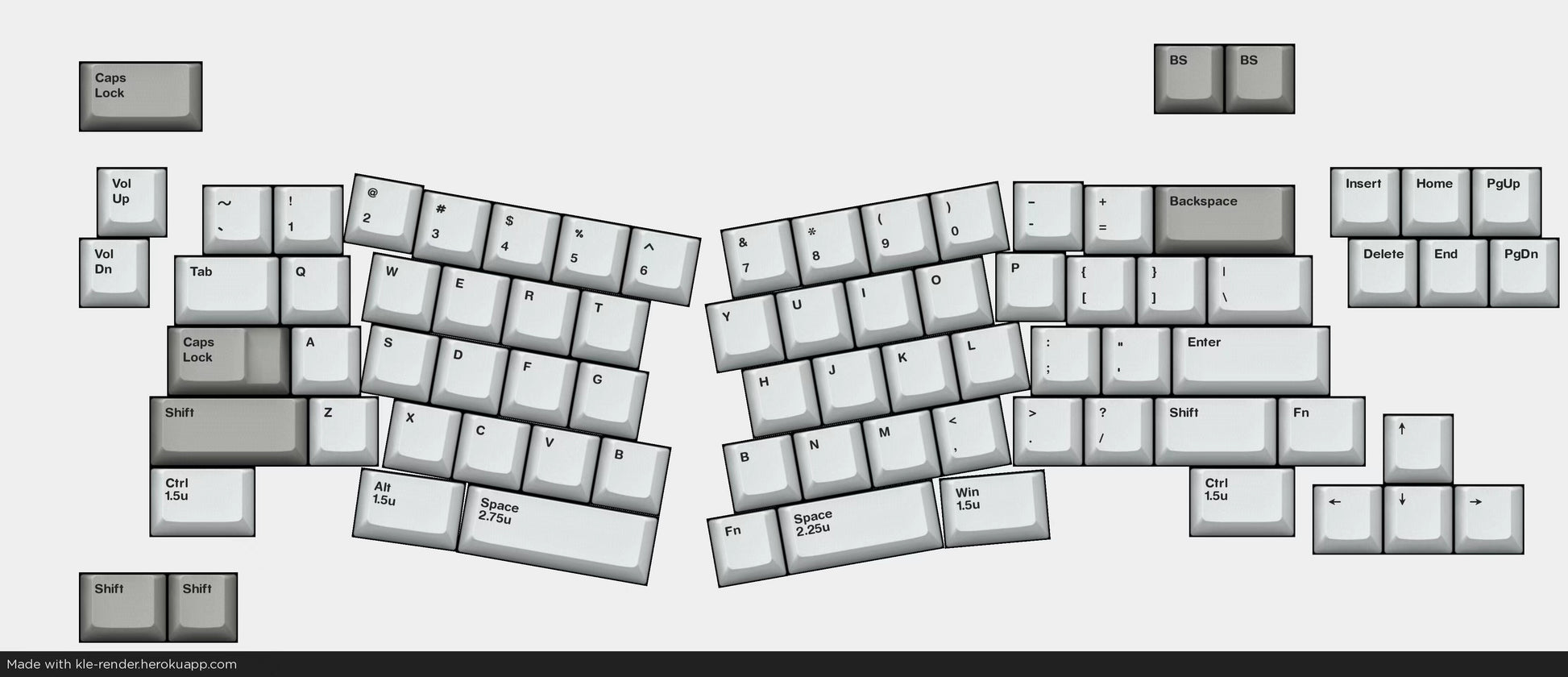

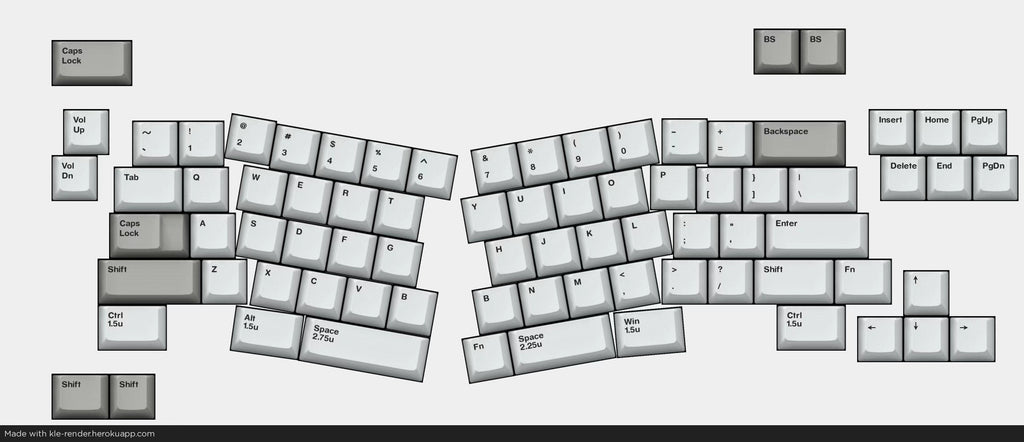

Solder PCB Layout



GB start time: 05/12/2023

GB end time: 05/18/2023

Shipping date is estimated to be Q4 2023-Q1 2024
